Lines and Angles and Symmetric Extrude

Step 1) Open up a new document.

Step 2) Create a line of length 2 from the origin and line of length 3 from the origin; something like . Their exact angle doesn’t matter, just something like :

2lines

Step 3) Create a 45 degree angle between the 2 line segments:

how-to-do-angle

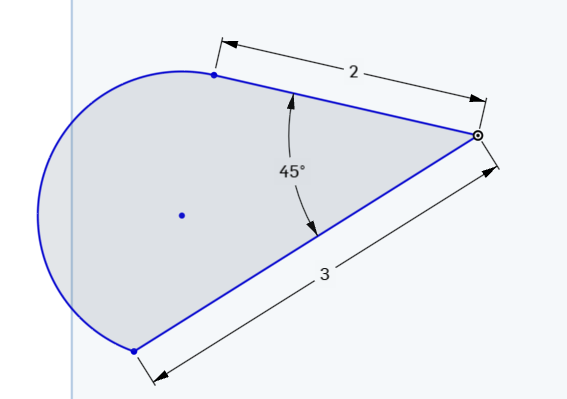

Step 4) Connect the end points with a tangent arc:

tangent-arc

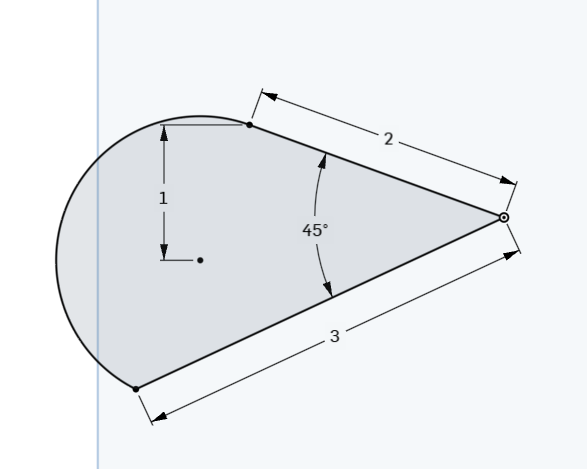

Step 5) Dimension the center of that arc with the point of top line as shown:

tangent-arc-dimensioned

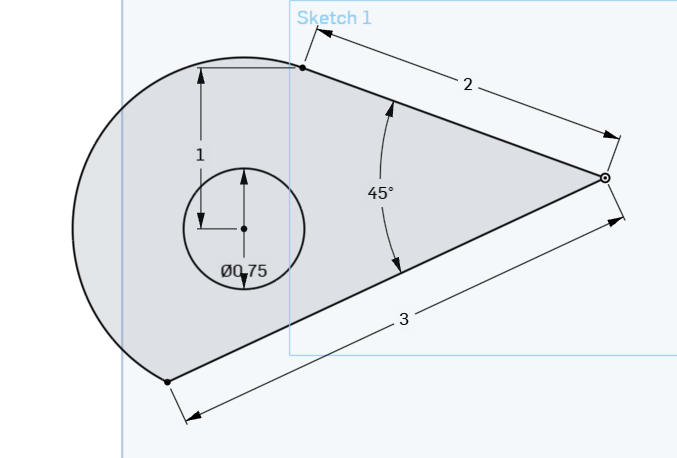

Step 6) Create an inscribed circle as shown :

inscribed-circle

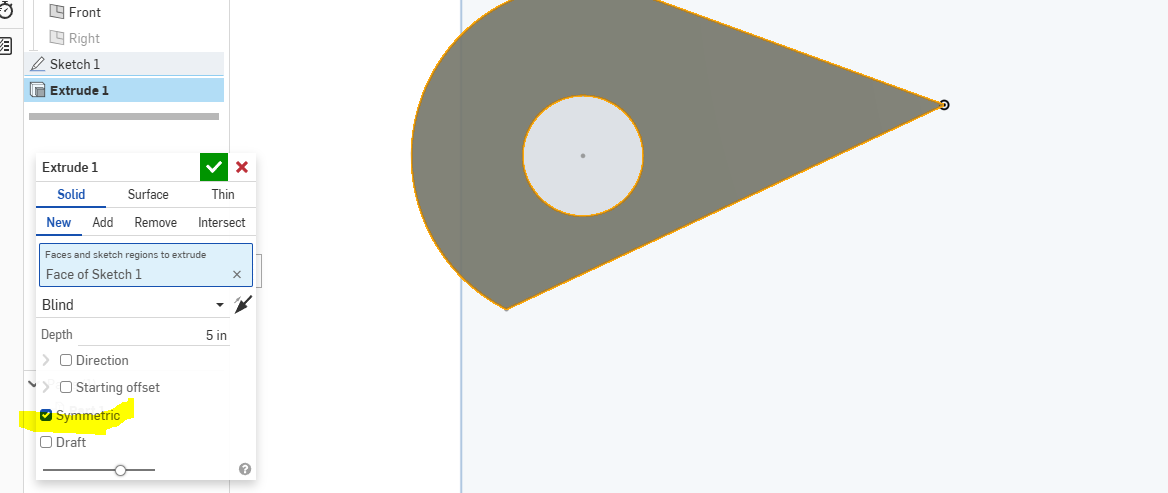

Step 7)  Create a symmetric extrudesymmetric-extrude2

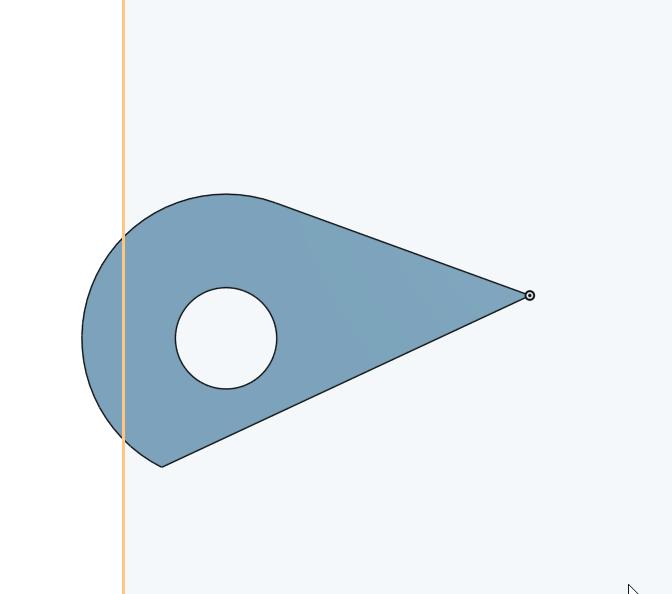

Step 8) Finished product. Notice how the symmetric extrude goes up and goes down:

symmetric-extrude
