bat shape- on shape

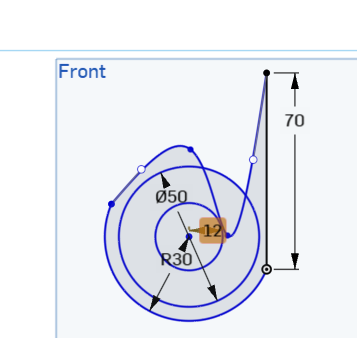

Step 1)  Use the Spline tool to create a bat shape. The more complex the shape, the more the points.

Picture 1 : 4/5

Screenshot from 2025-10-23 07-56-38



Picture 2 : 5 out o 5

bat pciture 2

You can also pick a more complicted or different picture



Do an extrude on it.



Coffe Cup Tips

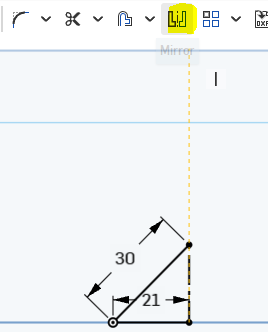

How to Dimension over a Construction (mirror line)

mirror lined dimension\

After offset, make sure you’re points are coincident– Watch the end carefully!

offset and coincident 2

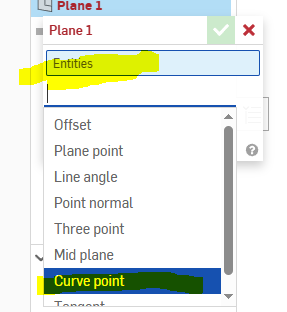

Curve Point option of plane

curve point option

Multi-Extrude and Revolve

Step 1) Open up any do-now that we have already done . Delete the prior sketch

Step 2) Create a rectangle with a center on the origin and a height of 40 and width of 50

center point rect icon

Step 3) Make a circle centered at the origin. The  4 points of the rectangle should be coincident with this circle. Resulting picture:

circle aroudn rect

Step 4) Use the scissors tool to create this :

scissors to create

Step 5)  Create a circumscribed polygon with 6 sides (hexagon). The 2 vertices should be coident with the points as shown below:

hexagon coincident



Step 6)  Use the scissor tool to make this :

scissors to create pat deux

Step 7) Extrude the middle part  by 50MM and the bottom remaining hexagonal part by 30 MM. to produce:

multi-extrude



Step 8)  take a screenshot and attach to google doc and then delete your work



Part II: Your own Revolve, Seep or Loft

Create at least 3 interconnected shapes (circle, arcs, rectangles etc..). Perform either a revolve, a loft or a sweep. I will give an extra credit point if yo udo a sweep or loft!

Revolves and Shapes with Symmetry

Do now

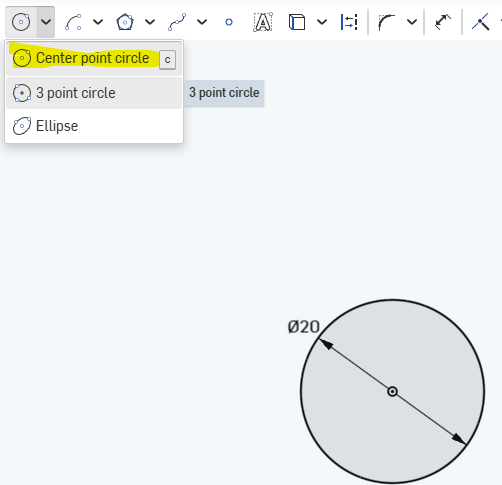

Step 1) Clear out an old do now. Create a center point circle with a radius of 20:

center-point-circle

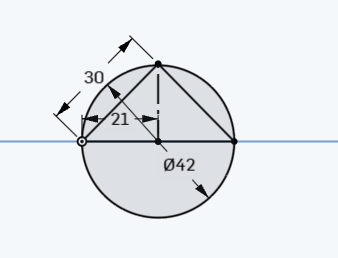

Step 2)  Make a diameter

diameter

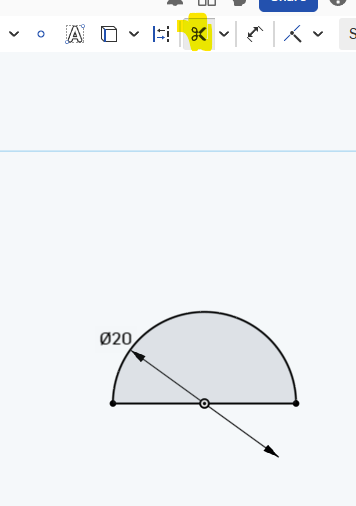

Step 3) Use the scissor tool to cut the bottom half of the circle off

diameter scissors

Step 4)  Make a  vertical construction line right up the middle of the circle

vertical construction line

step 5) Add 2 lines symmetric about the construction line

symmetric about construction line

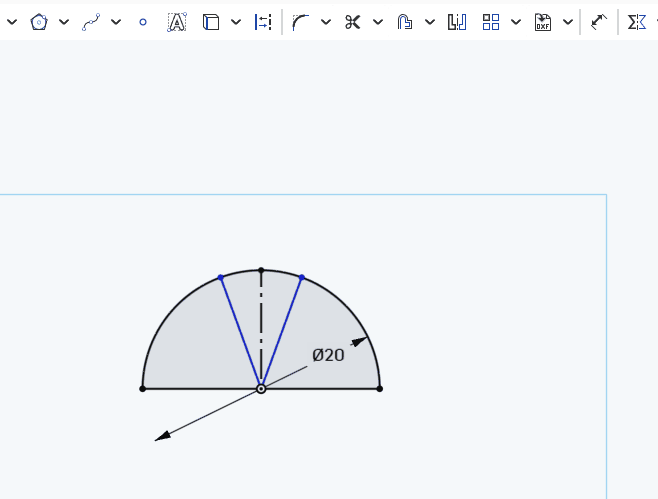

Step 6) the angle should be 40 . How to dimension an angle

dimension central angle

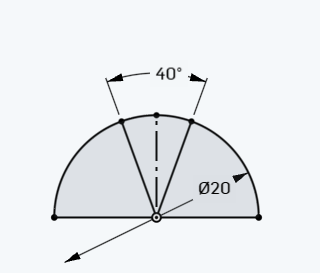

result :

dimension final final

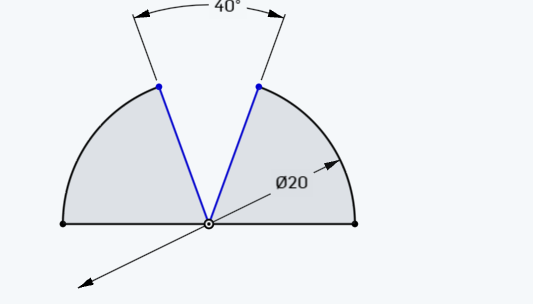

step 7) Use the scissors tool to cut out the center arc.

cut out middle



step 8) MIrror the shape over teh diameter:

cut out middle

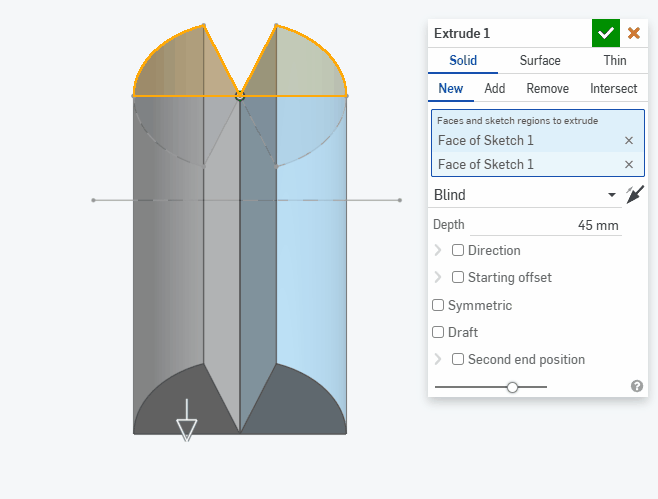

Step 9) Extrude 1 half of shape by 45 MM

extrude

Step 10) Extrude the other half by 27 MM



Part II . Your own shape

After you take a screenshot of the above shape, do a different type of 3-d model. You can use anything else whether its a revolve, a sweep  or a loft

To get full credit on this you must use either a sweep or a loft as your 2nd 3-d shape.



2 Revolves and add a plane

We are going to make 2 revolves

Step 1) create a 20×30 rectangle with centered at the origin. “Center point

20 by 30 at center

Step 2) Add a 3 point arc using tangent

tangent arc

Step 3) Create a fillet with a radius of 7

fillet with a radius of 7

Step 4)  Add a construction line , dimension it to 28 MM away from origin

construction line-dimensioned

Step 5) Revolve the shape around the construction line to produce:

revolve

Step 6)  Create a reference plane. Make sure you connect it to the top plane :

reference plane

Step 7)  Take a screenshot of the  above shape and paste it in google doc



Step 8) Create  an extrude of a complex shape.  Your “complex shape” should be at least 3 parts (like a circle a rectangle and something else). Your extrude should go to 2 different heights



Take a final screenshot into the google doc

Rectangle Center with Extrude

Step 1) open any prior do now and delete the sketch and restart

Step 2) make sure that the workspace units are MM

Step 3) create a rectangle with its center point as the midpoint on the origin. The rectangle should be 30 by 20. See video below

center poitn rectnagle

Step 4)  Create a semicircle with a radius of 15  (use or or make a circle and cut half off with the scisoors tool

semicircle overrectangle

Step 5) Create an isosceles triangle like this (Dimensions do not have to be exactly like mine)

isoscles triangle

The remaining steps are up to your discretion

Part I . REVOLVE

Step 6) Create a line somewhere and revolve the shape around it

Part II) 2 Extrudes with your own shapews

Create a shape with multiple elements (maybe a circle and a rectangle) Create 2 extrudes with different heights like we did before



Screenshot and put in google classroom.



Do-Now Multiple Extrudes



Step 1) open up any of our prior documents that we are done with and delete the prior work

Step 2)  Create this sketch with these dimensions. The lines from the circle to the rectangle must be tangent to the circle.

2-d-drawing

Step 3) Extrude the smaller inside circle 50 mm:

50 MM extrude

Step 4) the outer circle and the rectangle should have a 25 MM extrude

25 MM extrude

Step 5)  The connecting shape is a 10 MM extrude

10 MM extrude



Step 6)  Create your own shape  and do a revolve

3d Day 2

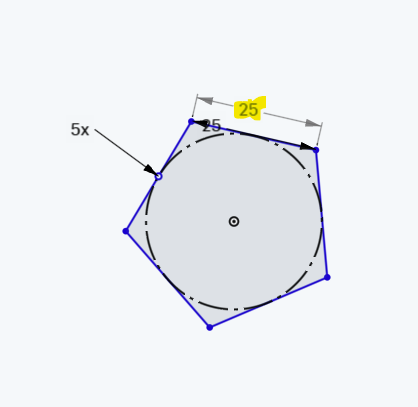

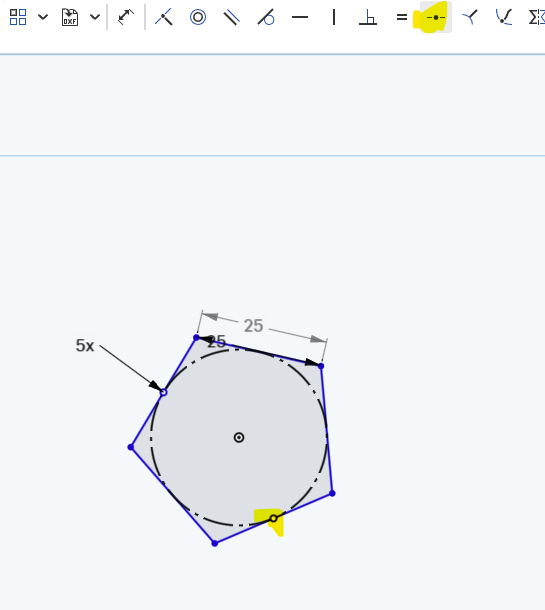

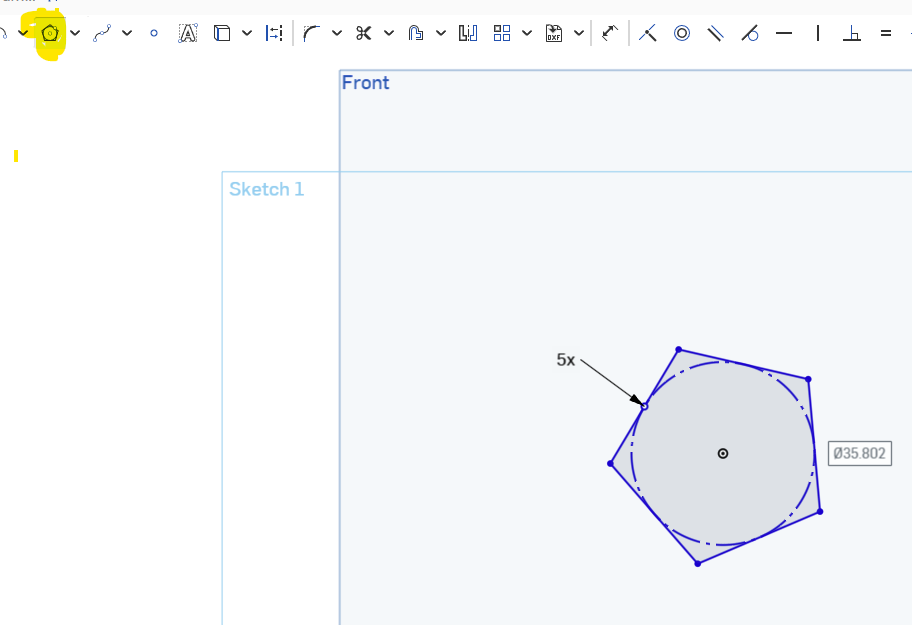

Step 1) create a 5 sided

5 sided polygon

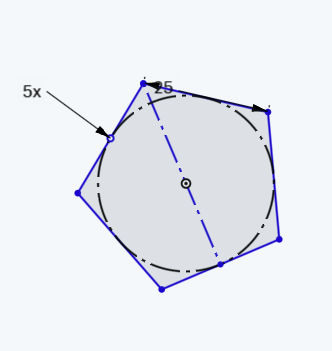

Step 2)  Create a line for the revolve

line for revolve

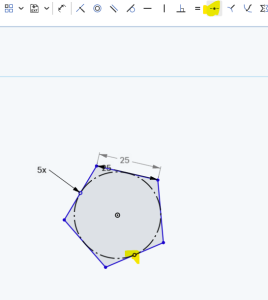

Step 3)   Make that line parallel to the line of the polygon  using the parallel constraint

parallel line for revolve

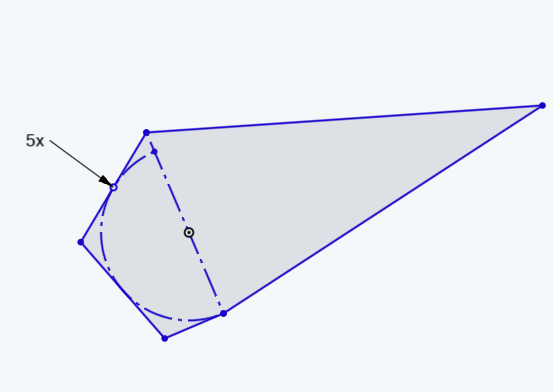

Step 4) Revolve the polygon over the line:

revolve 3

Step 5) That is a sideways look at the front. Change the 3-d angle and you can see this :

revolve 4



Step 5)  Create a rectangle and dimension it to 20×30 and use an extrude on it.





Screenshot and submit to google

3-d First Forays

Step 1) Create a rectangle and dimension to 30 by 50 as shown

dimension recangle

Step 2)  Create your first extrude . Use 30 mm as shown in the video below:

first extrude

Step 3)  Let’s make  it a shell :

first shell

Step 4)  Now let’s try something different. Delete the shell and delete the extrude, then delete the sketch the start all over.



Step 5) Draw a circle and a line. Don’t worry to much about the dimensions. Just make it look close to this :

circle and line

Step 6)   Create a revolve using the line as the axis as shown in this video:first revolve



Step 7) Mess around with the 3-d shapes and do something else…make another revolve..or another extrude or one of the others. Submit a screenshot of this below the do now



Onshape Do Now Partial Circle

Step 1) Create a 30 mm horizontal line with its right endpoint on the origin.

dimension 30 mm line from origin

Step 2)  Add a point to the line, then use then use the midpoint constraint so that it is a midpoint.

add point then use midpoint costraint

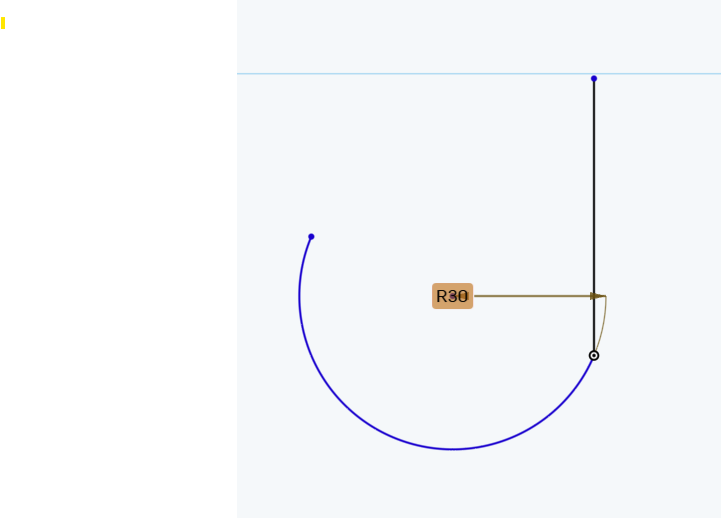

Step 3) Make a 3 point arc starting at the midpoint and centered on the left end of the line segment:

make a 3 poin tarc starting at the midpoint

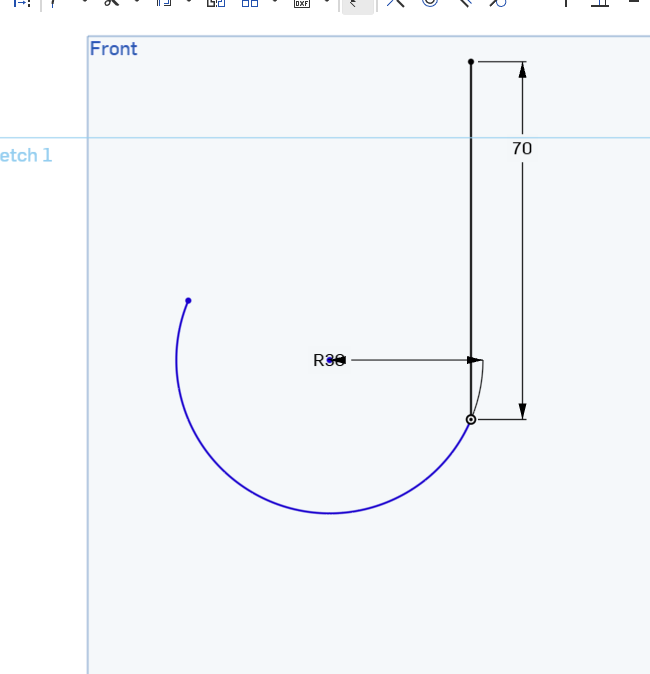

Step 4) Dimension radius to 15

dimension the arcs radius to 15

Step 5)  Create an inscribed hexagon using the polygon tool

inscribed hexago

Step 6)  Remove some parts of the hexagon using the cut tool:

cutt tool to remove some parts of the polygon

Step 7) Make a vertical and a horizontal lines  as shown below. Note they are dimensioned.

vertical and horizontal lines

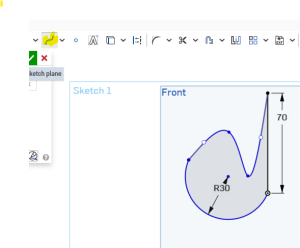

Step 8)

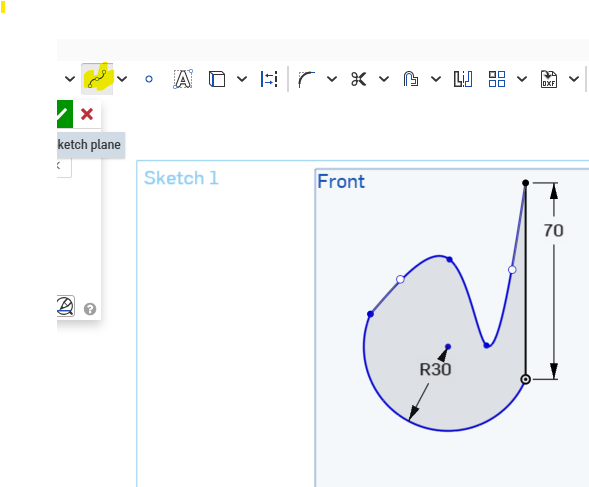

spline tool

When done, paste a screenshot in the google doc, then go here
