2 Revolves and add a plane

We are going to make 2 revolves

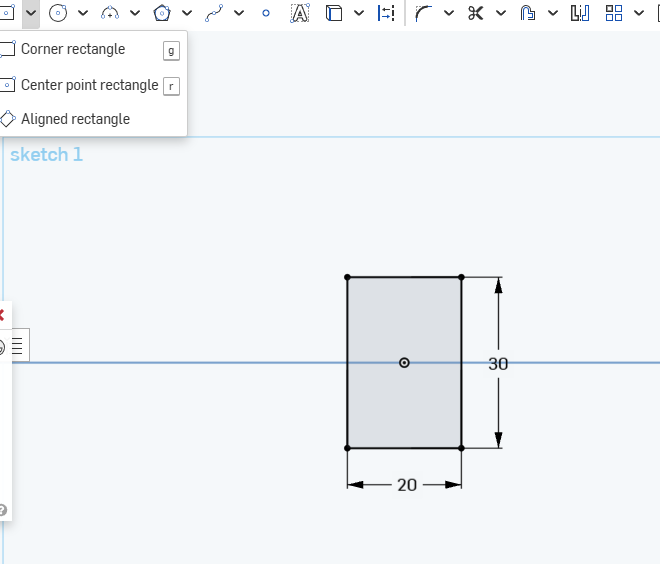

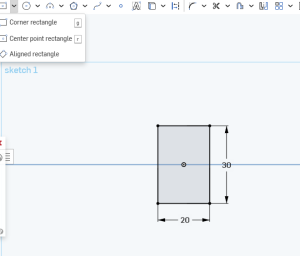

Step 1) create a 20×30 rectangle with centered at the origin. “Center point

20 by 30 at center

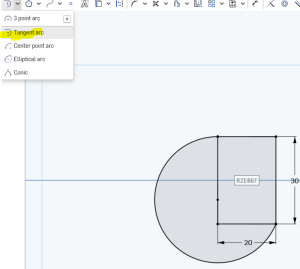

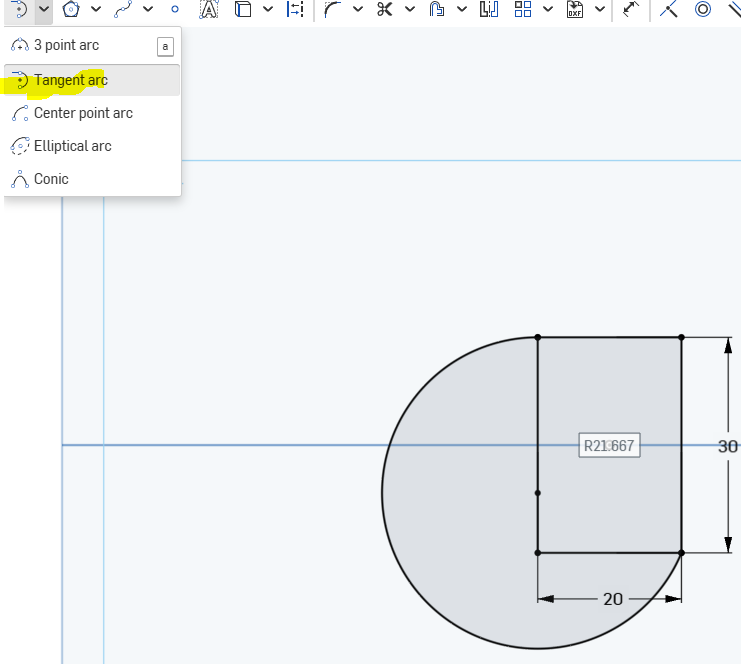

Step 2) Add a 3 point arc using tangent

tangent arc

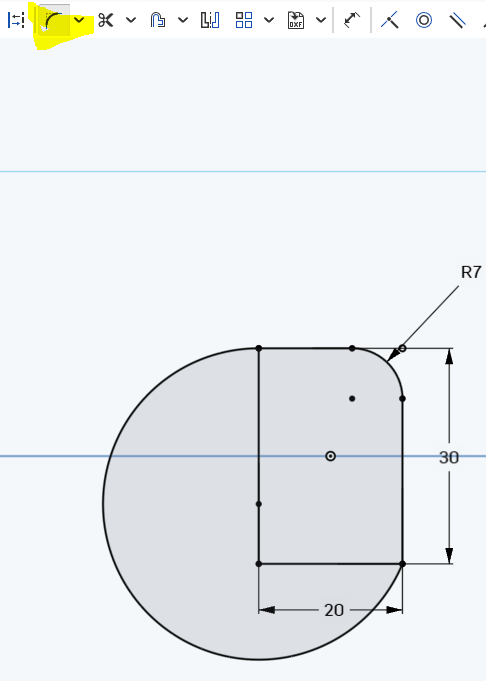

Step 3) Create a fillet with a radius of 7

fillet with a radius of 7

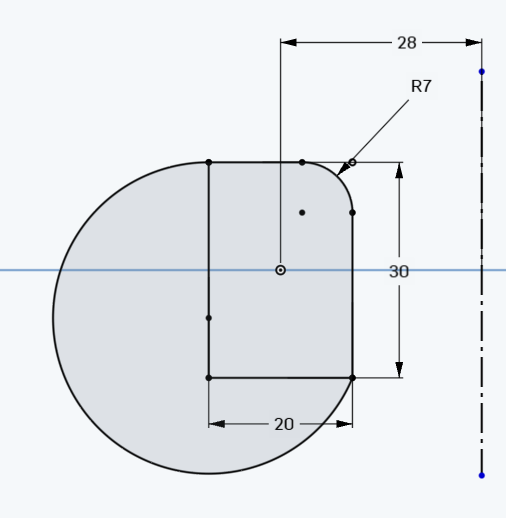

Step 4)  Add a construction line , dimension it to 28 MM away from origin

construction line-dimensioned

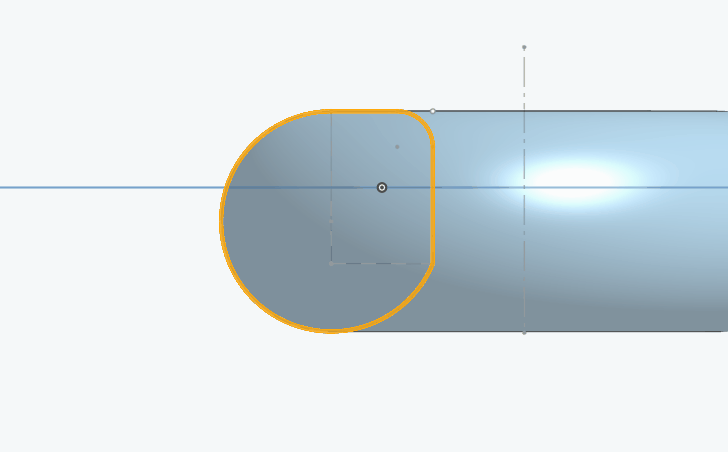

Step 5) Revolve the shape around the construction line to produce:

revolve

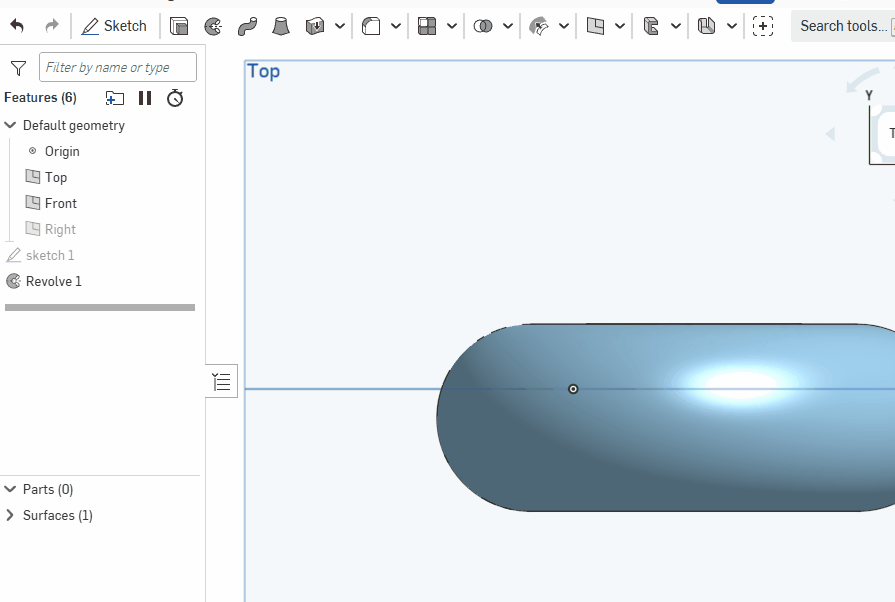

Step 6)  Create a reference plane. Make sure you connect it to the top plane :

reference plane

Step 7)  Take a screenshot of the  above shape and paste it in google doc



Step 8) Create  an extrude of a complex shape.  Your “complex shape” should be at least 3 parts (like a circle a rectangle and something else). Your extrude should go to 2 different heights



Take a final screenshot into the google doc
